# Notation mesurée et Mensurstrich

## Adding a mensural time signature to your score

Pour ajouter une indication de mesure mensuraliste, il faut d'abord ajouter une [indication de mesure conventionnelle](https://handbook.musescore.org/fr/notation/rhythm-meter-and-measures/time-signatures), puis en modifier l'apparence en lui substituant le itsymbole mensuraliste approprié dans la boîte de dialogue des [propriétés](https://handbook.musescore.org/fr/notation/rhythm-meter-and-measures/time-signatures#time-signature-properties). Ces signes n'ont qu'une valeur d'affichage : il n'est pas possible de modifier le rapport de durées entre les valeurs de notes et l'indication de mesure conventionnelle sous-jacente reste inchangée.

## Using mensural note symbols

\[À ajouter]

* add from symbols palette, hide

## Working with non-metered music

Early music, such as renaissance choral music, may be written without barlines or a time signature. This can be achieved in MuseScore as follows:

1. Set up the instruments or voices of the score in the usual way (See [Setting up your score](https://handbook.musescore.org/fr/basics/setting-up-your-score));
2. Hide the time signature;
3. in `Format`→`Style`→`Score`, check the box titled "Display note values across measure boundaries";
4. Right-click on a measure in the top staff and select [Staff/Part properties](https://handbook.musescore.org/fr/notation/instruments-staves-and-systems/staff-part-properties);
5. Uncheck "Show barlines"; repeat this for each applicable staff (see note);
6. Click `OK`.

**Note**: In step 4 you can make the barlines invisible instead by selecting all and pressing `V`.

Note that the score still behaves as if measures are present. [Measure properties](https://handbook.musescore.org/fr/notation/rhythm-meter-and-measures/measure-properties) can be applied if required.

## Working with Mensurstrich

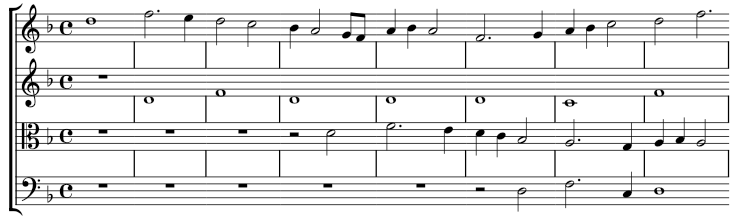

*Mensurstrich* is a form of modern notation of early music in which barlines are drawn *between* staves rather than across them:

<figure><img src="https://2916339870-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FduxygJGBb4uQWhC9aJJP%2Fuploads%2Fgit-blob-b52147055928bfb8cb39c1a7066de161964c95ab%2Fmensurstrich_example_1.png?alt=media" alt="Mensurstrich"><figcaption></figcaption></figure>

### Adding barlines between staves

1. Right click on the bottom staff of the intended *mensurstrich* system, and select [Staff/Part properties](https://handbook.musescore.org/fr/notation/instruments-staves-and-systems/staff-part-properties#staff-properties). Uncheck "Show barlines".
2. Select the first (not the start!) barline for *each* of the remaining staves;
3. Check the "Span to next staff" box in the **Barline** section of the **Properties** panel;
4. Adjust "Span from" to set the position of the top of each barline;
5. Press `Set as staff default`;

## Displaying note values across measure boundaries

1. From the menu bar, select `Format`→`Style`→`Score`;
2. Check "Display note values across measure boundaries".
