MuseScore Studio's UI (user interface) consists of the main application window, as well as all associated dialogs, panels, and menus.
In the top left of MuseScore's main window are three tabs, labelled Home, Score and Publish.

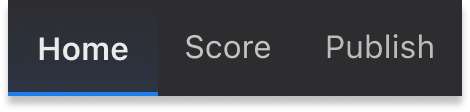

The Home tab contains the following pages:

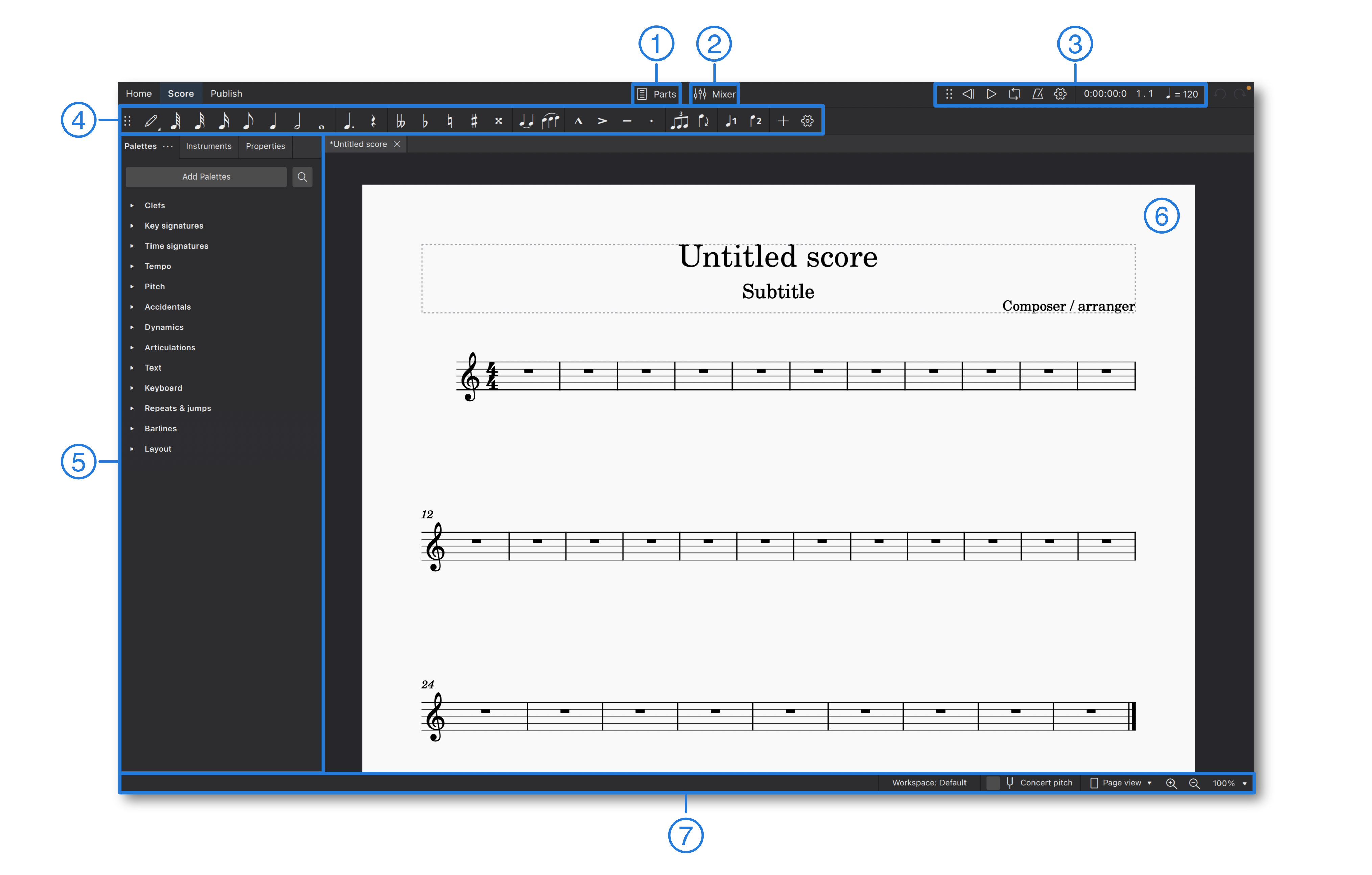

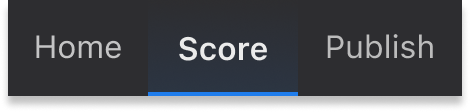

This area is where you do most of your work in MuseScore, including adding music notation and listening to playback of your score. The workspace consists of several regions (numbered according to the diagram below):
Score view / notation view: This is the main central region that displays the current score or instrumental part as sheet music. This is where notation elements are added, edited, and deleted.
Status bar: This runs along the bottom of the window. The left side displays useful information about whatever elements are selected in the score. The right side contains controls for switching between workspaces, selecting concert or transposed pitch views, and specifying the page display and zoom factor (magnification).
Keyboard users can press Tab or F6 to navigate between these UI regions. Within each region, navigation is performed with the arrow keys and Tab.
On macOS, MuseScore's menus are part of the system-wide menu bar located at the top of the screen. Keyboard users can press Ctrl+F2 to reach this area, and then navigate with the arrow keys or letter keys (e.g. press F for File).
On Windows and Linux, the menu bar is located at the top of each application window. Keyboard users can reach the menus by pressing the Alt key, optionally followed by a letter or number key (e.g. press Alt+F for File, followed by A for Save as). The relevant letter or number is known as the mnemonic access key; it's underlined in the menu while Alt is held. Arrow keys also work for navigation in the menus.

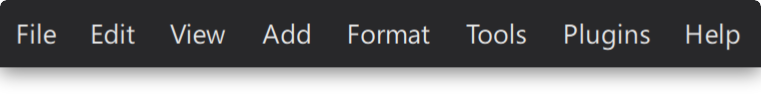

MuseScore's menu bar contains the following menus:
The File menu is used to create a new file, open and save files, import and export various formats, create and edit instrument parts, and print.
The Edit menu provides undo and redo options, copy/cut/paste options, and Find / Go to functionality.
The View menu is used to show or hide various palettes, dialogs, and other workspace elements.
Items under the Show submenu adjusts display of non-printing elements:
Show irregular measures: A plus sign or minus sign at the top right of a measure indicates that its duration differs from that set by the time signature.
The Add menu is used to add different kinds of elements to the score, such as notes, text, measures, etc.
The Format menu is used to adjust global and local formatting of the score. It also allows you to stretch or contract the score, load and save score styles, and much more.
The Tools menu offers commands to manipulate the score or selected regions of it, including transpose, exchange voices, toggle slash notation, etc.
The Plugins menu is used to run plugins. Plugins must be enabled before they will appear in this menu. Use the Manage plugins option to enable MuseScore's built-in plugins and any new plugins you have installed.
When posting on the forums, it's important to say which version of MuseScore Studio you are using. This can be found via Help > About MuseScore Studio on Windows and Linux, or via MuseScore Studio > About on macOS.
To open the context menu for a particular item:
Right-click on the item with the mouse, or;
Select the item with the keyboard and press Shift+F10.
Some PC keyboards also have a dedicated Menu or Copilot key near to the right Alt key (AltGr). In Windows 11, you may need to press and release this key quickly to avoid activating Microsoft Copilot.
If you right-click on an empty region within a measure, the resulting context menu contains options for Staff/Part properties (used to rename a staff or replace its instrument) and Measure properties (used to change measure numbering or create incomplete measures).
To access these options via the keyboard:
Select a note or rest in the relevant staff or measure.
Press Shift+F10 (or the dedicated Menu key if your keyboard has one) to open the menu.
Create a new MuseScore account, or login to your existing account. With an active account, you can get technical assistance and report bugs in the forums at . You can also save your files to the cloud on .
This section allows you to set up a new score, or to open an existing one. Learn about creating new scores in .
This window displays a list of available plugins. See the chapter on to learn about managing these useful add-ons.
This is where video tutorials are hosted. Clicking on any video tutorial opens it on the .
: Located near the top center of the main window, this button opens the Parts dialog, where you can create, edit and delete instrumental part scores.
: The button to the right of Parts opens and closes the Mixer panel, where you can control the sound and volume of each instrument individually.
: Located in the top right, this toolbar enables you to play, pause, rewind and loop playback. Using the mouse, you can drag the six dots grip area (â ¿) to undock this toolbar and expose additional options to seek and control playback tempo.
: Extending across the top of the program window, just below the Parts and Mixer buttons, the note input toolbar includes essential notation elements used in score writing. Use it to set note duration, toggle accidentals, apply common articulations, enter tuplets, and switch between voices.
Left sidebar: The area on the left side of the program window contains various panels such as , , and . These can be shown or hidden as desired, or undocked and dragged to the right sidebar; an equivalent area on the other side of the window.
Almost all panels and toolbars can be un-docked and repositioned according to your project requirements and workflow preferences. Learn more about this in .

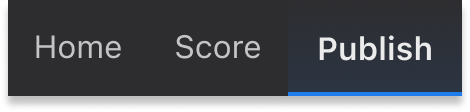

This tab allows you to view your score without the clutter of the note input toolbar or sidebar panels. There are options to print the score, and to export it in a variety of image, audio and document formats. When your score is finished, you can also publish it to .
Show invisible: Show/hide elements depending on their setting. If this option is ticked, invisible elements are shown in the score window as light gray.
Show formatting: Show/hide or symbols.
Show frames: Show/hide the dotted outlines of .
Show page margins: Show/hide .
The Help menu provides access to this handbook, as well as options to check for updates or . There's also an Ask for help option, which leads to a forum where you can ask questions or report bugs.
In certain parts of the application, primarily in the , context menus are available with additional functionality, such as options to copy, edit, customise, delete, or view the properties of whichever item(s) were selected at the time you opened the menu.
Outside the score, the presence of a context menu is often indicated by a small button with three dots (â‹®) or a settings cog (â›). Press the button to open the menu. If the button is associated with a nearby item (e.g. in the ), you can also right-click on that item or use Shift+F10.
Hold down the Shift key and press Left or Right to create a .
